When professionals need to move fast while carrying heavy loads — whether battling a wildfire, conducting an emergency rescue, or patrolling remote terrain — every kilogram of perceived burden and every percentage point of energy expenditure matters. The Kenqing Carrying & Walking Assist Series is purpose-built for these extreme demands. The Ant-P1 Sports Enhanced Robot reduces oxygen consumption by 30% during heavy load carrying, while the Beetle-L1 cuts shoulder pressure by 50% — both enabling users to move faster, farther, and safer under load. With a rated torque of 28Nm, max speed of 15Km/h, and construction from aerospace-grade aluminum alloy and carbon fiber, the Ant-P1 is one of the most capable carry-assist exoskeletons available. The passive Beetle-L1 requires no battery and offers unlimited endurance, making it ideal for sustained operations where charging is not an option.
Key Features
- Oxygen Consumption Decreased by 30% (Ant-P1) – Measurably reduces physical exertion during heavy load carrying, extending operational endurance
- Shoulder Pressure Reduced by 50% (Beetle-L1) – Passive structural design redistributes load from shoulders to the body’s stronger load-bearing structures
- AI Learning & Terrain Adaptation (Ant-P1) – Intelligent system learns user movement patterns and adapts assistance to varying terrain in real time
- Saving Physical Consumption – Both models are engineered to preserve user energy for longer, more demanding missions
- Resistance Training Efficient – Can also be used for functional strength and endurance training
- Powerful & Lightweight – Ant-P1 mainframe weighs just 3.7kg despite delivering 28Nm of rated torque
- Flexible & High Speed – Supports natural dynamic movement at speeds up to 15Km/h
- Battery Replaceable (Ant-P1) – Hot-swap battery system keeps the unit operational without downtime
- Durable & Easy To Use – Field-tested construction with minimal setup time for rapid deployment
- Unlimited Endurance (Beetle-L1) – Fully passive design requires no power source; works indefinitely
Use Cases
- Emergency rescue operations in complex terrain
- Firefighting and weight-bearing patrol
- Logistics and transportation: airports, ports, warehouses
- Manufacturing: factories and mines
- Military and law enforcement field operations
- Functional resistance training and physical conditioning

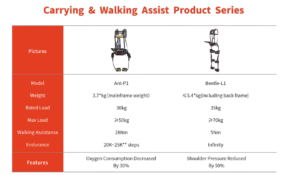

Model Comparison
| Model | Weight | Rated Load | Max Load | Walking Assistance | Endurance | Key Feature |
|---|---|---|---|---|---|---|
| Ant-P1 | 3.7kg* (mainframe) | 30kg | ≥50kg | 28Nm | 20K–25K** steps | Oxygen Consumption -30% |
| Beetle-L1 | ≤5.4kg* (inc. back frame) | 35kg | ≥70kg | 5Nm | Infinity | Shoulder Pressure -50% |
*Slight differences in weight may occur due to configurations and fabric materials.
**Endurance tested under laboratory conditions; actual results may vary.
Detailed Specifications
Ant-P1 – Sports Enhanced Robot
| Parameter | Specification |
|---|---|
| Weight | 3.7kg* (mainframe, not including back frame) |
| Rated Load | 30kg |
| Max Load | ≥50kg |
| Rated Torque | 28Nm |
| Max Speed | 15Km/h |
| Endurance | 20K–25K** steps |
| Charging Time | 1.5H |
| Materials | Aluminum Alloy + Carbon Fiber |
| Applicable Height | 155–185cm |
Beetle-L1 – Passive Carrying Assist Robot
| Parameter | Specification |
|---|---|
| Weight | ≤5.4kg* (including back frame) |
| Rated Load | 35kg |
| Max Load | ≥70kg |
| Walking Assistance | 5Nm |
| Endurance | Infinity (no battery required) |
| Shoulder Pressure Reduction | 50% |
Brand Background
Shenzhen Kenqing Technology Co., Ltd. was founded in 2015 with a mission to make smart and lightweight exoskeletons that improve people’s ability to walk, carry, and lift. With 9+ years of deep R&D experience and 60+ patent applications including 6 PCTs, Kenqing’s exoskeleton solutions are in mass production and widely adopted across outdoor sports, elderly care, industrial operations, and firefighting fields globally.
